Functions:

Laser caliper is a professional non-contact dynamic diameter measuring instrument, suitable for tube, plastic tube, bearing and other round workpiece diameter online measurement.The instrument not only shows the diameter and deviation, but also can automatically control the diameter according to the user's requirements to maintain the consistency of the line diameter.The dual - dimensional caliper can simultaneously measure the diameter of XY in both directions.

● applicable to any round tube/pipes online measurement.

● non-contact measurement, fast detection speed, high accuracy, stable performance.

● using F theta optical lens, the measured wire shake effect is small.

● built-in PID adjustment module, can automatically control the line diameter.

● omni-directional rotation operation panel, at the same time with a variety of sizes of remote display.

● multiple address rs232/485 communication interface.

● long life semiconductor laser.

● Swiss brushless dc motor, can adapt to the harsh environment continuous work.

Technical parameters

1. It has the functions of signal collection, processing, digital display and alarm;

2. Production process control and adjustment and computer RS485 serial communication function;

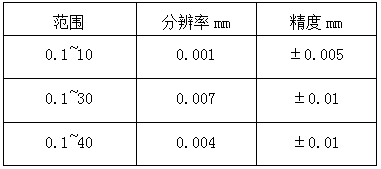

3. Measuring range and accuracy:
